Double Joints Metal Pipe Fittings AL-6B Aluminum + ADC-12 Material Reusable

Product Description

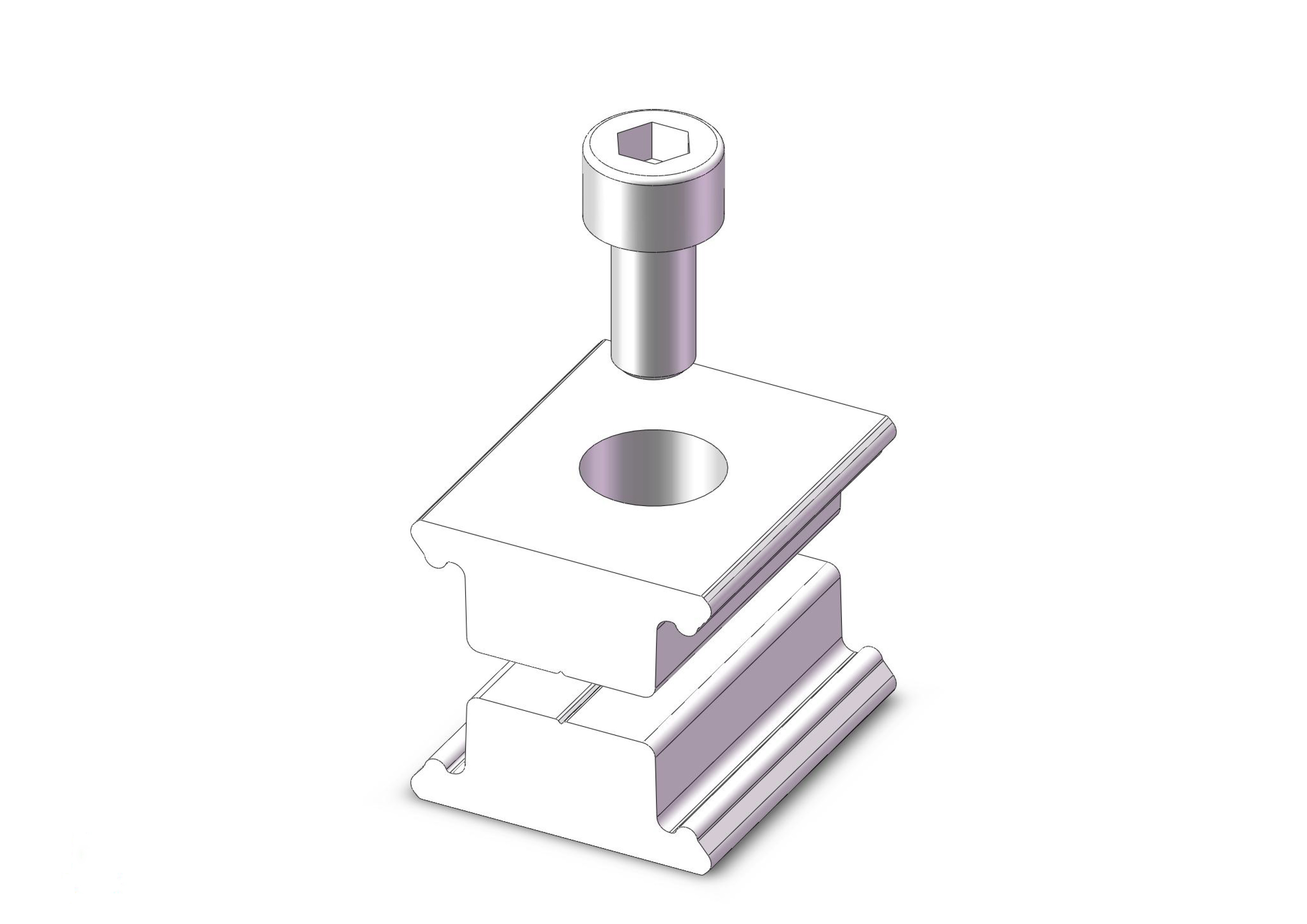

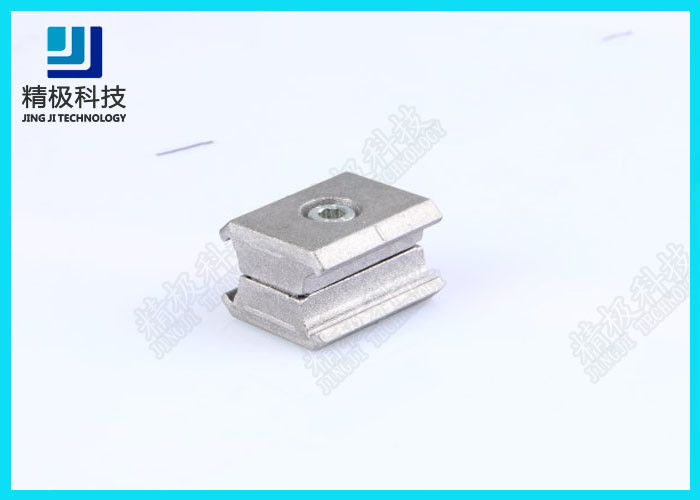

Double Joints AL-6B Aluminum Tubing Connector Silvery Joints Aluminum+ADC-12 Material

Distance between tube and tube: 12mm

Quick Detail:

Code

AL-6B

Distance

Distance between tube and tube is 12mm

Color

Silvery

Usege

Connect two Aluminum pipe

Applied

Aluminum pipe diameter 28mm

Application

logistic rack, production line, warehouse rack,  workbench

Description:

Aluminum tubes and connectors are our third generation products, which are widely used in the production shop, automotive, electronics, assembly, logistics and other industries. We can accept customization, customers can make reasonable design according to their actual needs.

Aluminum products are widely used in production, automotive, electronics, assembly, logistics and other industries. According to the variation of store items can make reasonable design, can be used too classify the store , easy to manage and speed up the staffs' efficiency.Aluminium alloy products with the very big difference in the traditional sense of the bar, it can be applied to shelves, chute, workbench, revolving cars, clean use in areas such as the interval.

Advantage:

1. Reusable

2. It can change emergency situations.

3. A variety of methods can be used.

4. The surface are through acid aluminum processing, can maintain beauty for a long time

5. located accurately, strong connecting, convenient operation, strong interchangeability

6. make effective use of space, operators can equipped with all kinds of parts on the framework

7. Various parts can be perfect combinated, can make workbench, distribution frame, trolleys, dust-free workshop.

The Technology :

1. stable and Lightweight

Made entirely of Aluminum-Tubes,profiles and connectoring elements,The high rigidity ,outstanding corrosion resistance and low weight of this material has resulted in it becoming a tried-and trusted material in many production applications.

The quanlity of the design is also clear to see.The high-quality look of the material serves as a lasting reminder of the economic benefits.

2. easier and Processing-faster
The fastenes can attached at any position ,meaning there is no need to first work out where they need to be located.

The one-screwdriver principle means there is no need to waste time finding the right tools and makes building structures with Line Aluminum Pipe and incredibly efficient process.

Profiles and Tubes are cut to length-cut-off tolerances and angular erros are compensated by the connecting elements,No further processing in required,as all the connecting elements are applied externally .
